利用hy2突破机房QoS与网络限制

背景

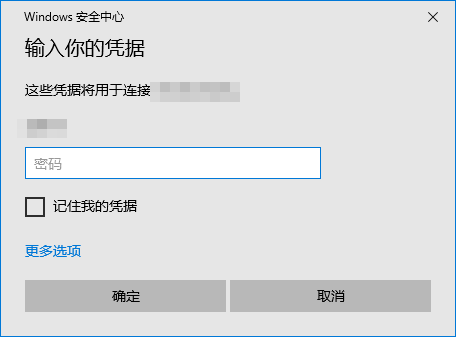

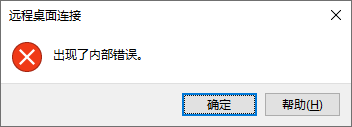

所在单位的网络QoS与网络限制非常严重，甚至于禁止了SSH、RDP等协议，导致无法正常连接远程桌面、服务器。且网速时不时只有不到1M的下行，上网检索资料变得异常卡顿。

尝试了在阿里云杭州VPS上部署了wireguard，连接过去，但效果不理想，只是解除了网络策略限制，可以连接SSH、RDP了，但速度依旧是一言难尽。

配置突破

因某些原因，具体不细说

暴力发包

服务端

在杭州VPS上面配置hy2服务端，

listen: :60000

tls:
  cert: /etc/ssl/www.crt
  key: /etc/ssl/www.key

auth:
  type: password
  password: FxaBzTbNmsyus3m7ym

其中www.crt与www.key为自签证书

客户端

server: 1.1.1.1:60000

auth: FxaBzTbNmsyus3m7ym

bandwidth:
  up: 100 mbps
  down: 15 mbps

socks5:
  listen: 127.0.0.1:7798

tls:
  insecure: true

Tun网卡实现

使用sing-box client

规则忽略hy2，避免无法正常连接到杭州服务器

{
  "log": {
    "level": "warn",
    "timestamp": true
  },
  "dns": {
    "servers": [
      {
        "tag": "remote",
        "address": "223.5.5.5",
        "detour": "proxy"
      },
      {
        "tag": "local",
        "address": "223.5.5.5",
        "detour": "direct"
      },
      {
        "tag": "block",
        "address": "rcode://success"
      },
      {
        "tag": "local_local",
        "address": "223.5.5.5",
        "detour": "direct"
      }
    ],
    "rules": [
      {
        "server": "block",
        "disable_cache": true,
        "geosite": [
          "category-ads-all"
        ]
      },
      {
        "outbound": "any",
        "server": "local_local"
      }
    ],
    "strategy": "ipv4_only"
  },
  "inbounds": [
    {
      "type": "tun",
      "tag": "tun-in",
      "interface_name": "singbox_tun",
      "inet4_address": "172.19.0.1/30",
      "inet6_address": "fdfe:dcba:9876::1/126",
      "mtu": 9000,
      "auto_route": true,
      "strict_route": true,
      "stack": "gvisor",
      "sniff": true
    }
  ],
  "outbounds": [
    {
      "type": "socks",
      "tag": "proxy",
      "server": "127.0.0.1",
      "server_port": 7798,
      "version": "5"
    },
    {
      "type": "direct",
      "tag": "direct"
    },
    {
      "type": "block",
      "tag": "block"
    },
    {
      "type": "dns",
      "tag": "dns_out"
    }
  ],
  "route": {
    "auto_detect_interface": true,
    "rules": [
      {
        "outbound": "dns_out",
        "protocol": [
          "dns"
        ]
      },
      {
        "outbound": "dns_out",
        "protocol": [
          "dns"
        ]
      },
      {
        "outbound": "block",
        "network": "udp",
        "port": [
          135,
          137,
          138,
          139,
          5353
        ]
      },
      {
        "outbound": "block",
        "ip_cidr": [
          "224.0.0.0/3",
          "ff00::/8"
        ]
      },
      {
        "outbound": "block",
        "source_ip_cidr": [
          "224.0.0.0/3",
          "ff00::/8"
        ]
      },
      {
        "outbound": "dns_out",
        "port": [
          53
        ],
        "process_name": [
          "hysteria-windows-amd64.exe",
          "hysteria-windows-386.exe",
          "hysteria.exe"
        ]
      },
      {
        "outbound": "direct",
        "process_name": [
          "hysteria-windows-amd64.exe",
          "hysteria-windows-386.exe",
          "hysteria.exe"
        ]
      },
      {
        "outbound": "proxy",
        "port_range": [
          "0:65535"
        ]
      }
    ]
  },
  "experimental": {
    "clash_api": {
      "external_controller": "127.0.0.1:19090"
    }
  }
}

最终效果
